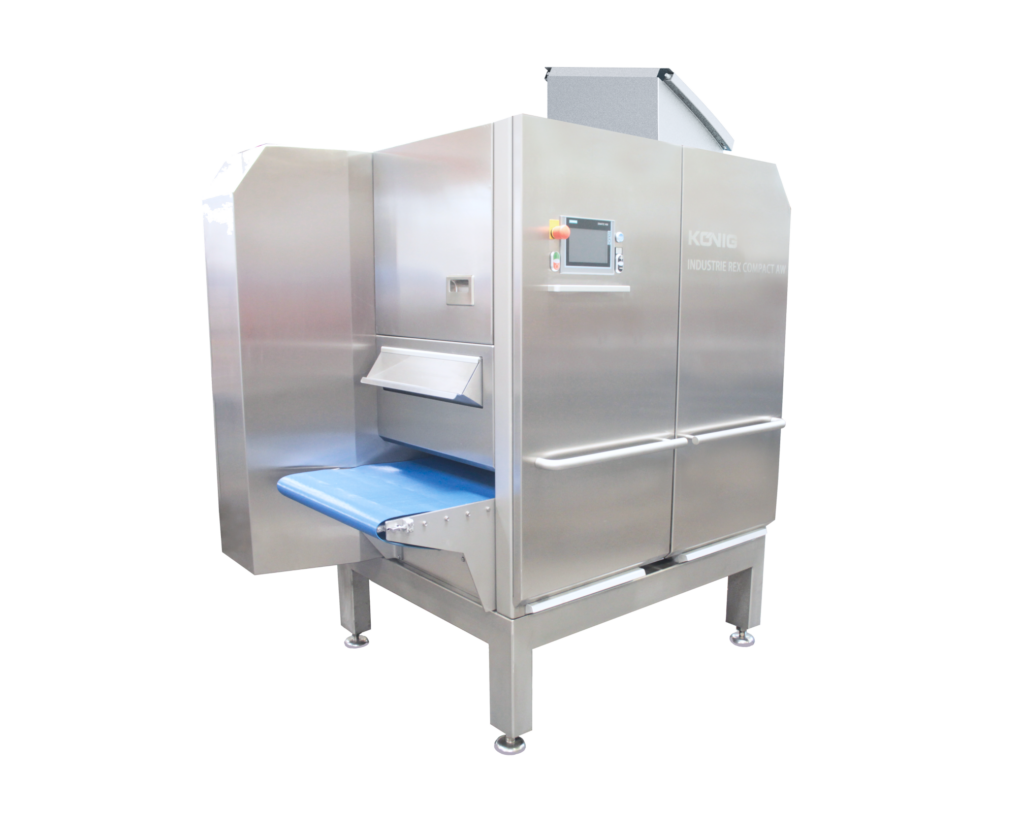

Industrial Rex Compact AW

The Industry Rex Compact AW offers the optimal balance between weight accuracy and delicate dough handling and impresses with its compact design.

Industrie Rex Compact AW

Overview

  • Maximum hourly output of up to 30,000 pieces per hour
  • Extremely high weight range (28 to 350 g)
  • Maximum weight accuracy thanks to finely adjustable pusher pressure
  • Interchangeable weighing strips and stamping tools
  • Compact design and easy operation
  • Easy cleaning and maintenance thanks to its unique hygiene design

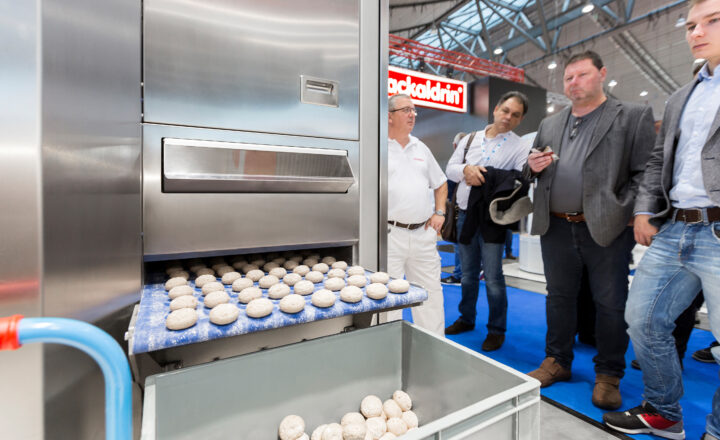

Detail View with Dough Pieces
Images
Detail View with Dough Pieces

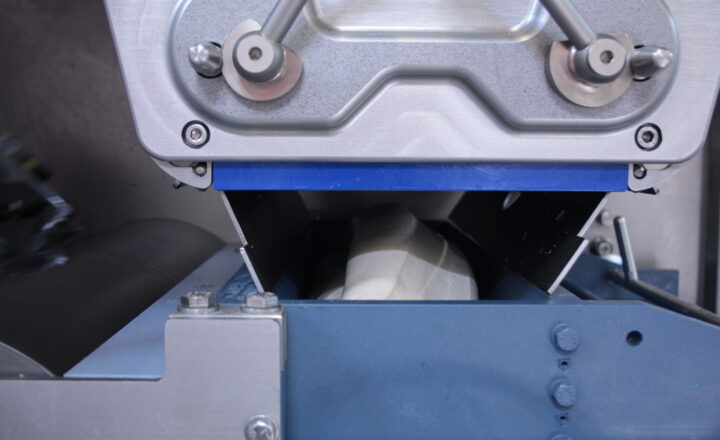

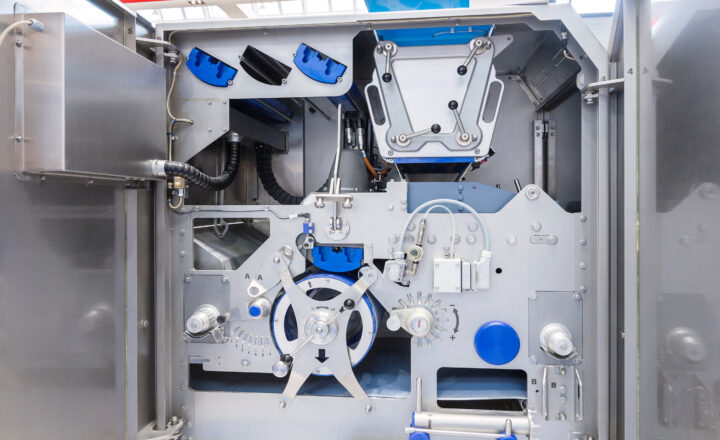

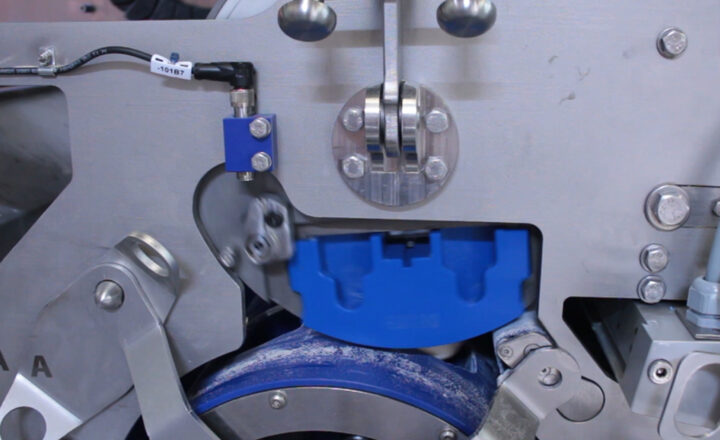

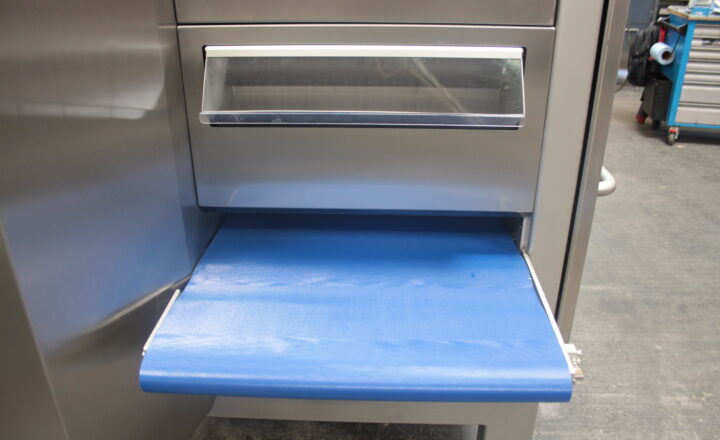

Industrie Rex Compact AW Detail View
Images
Industrie Rex Compact AW Detail View
Industrie Rex Compact AW Detail View
Images
Industrie Rex Compact AW Detail View
Industrie Rex Compact AW Detail View
Images
Industrie Rex Compact AW Detail View
Industrie Rex Compact AW Detail View
Images
Industrie Rex Compact AW Detail View
Industrie Rex Compact AW Detail View
Images
Industrie Rex Compact AW Detail View
Industrie Rex Compact AW Detail View
Images
Industrie Rex Compact AW Detail View
Video
Industrie Rex Compact AW

Technical details

Weight ranges (nominal width 420 mm)
Weight range depending on dough Number of rows Row reduction possible to max. hourly capacity Strokes/min
25 - 55g 6 3/4/5 18000 50
55 - 105g 6 3/4/5 18000 50
70 - 135g 5 3/4 13500 45
150 - 230g 4 3 9600 40
230 - 350g 3 2 6300 35

Variable division of rows: Weight range from 25 - 350 g in a single machine.

Weight ranges (nominal width 560 mm)
Weight range depending on dough Number of rows Row reduction possible to max. hourly capacity Strokes/min
25 - 55g 8 4/5/6/7 24000 50
55 - 105g 8 4/5/6/7 24000 50
80 - 160g 6 3/4/5 16200 45
150 - 230g 5 3/4 12000 40
230 - 350g 4 2/3 8400 35

Variable division of rows: Weight range from 25 - 350 g in a single machine.

Weight ranges (nominal width 700 mm)
Weight range depending on dough Number of rows Row reduction possible to max. hourly capacity Strokes/min
25 - 55g 10 4/5/6/7/8/9 30000 50
55 - 105g 10 4/5/6/7/8/9 30000 50
70 - 135g 8 4/5/6/7 21600 45
150 - 230g 6 3/4/5 14400 40
230 - 350g 5 3/4 10500 35

Variable division of rows: Weight range from 25 - 350 g in a single machine.

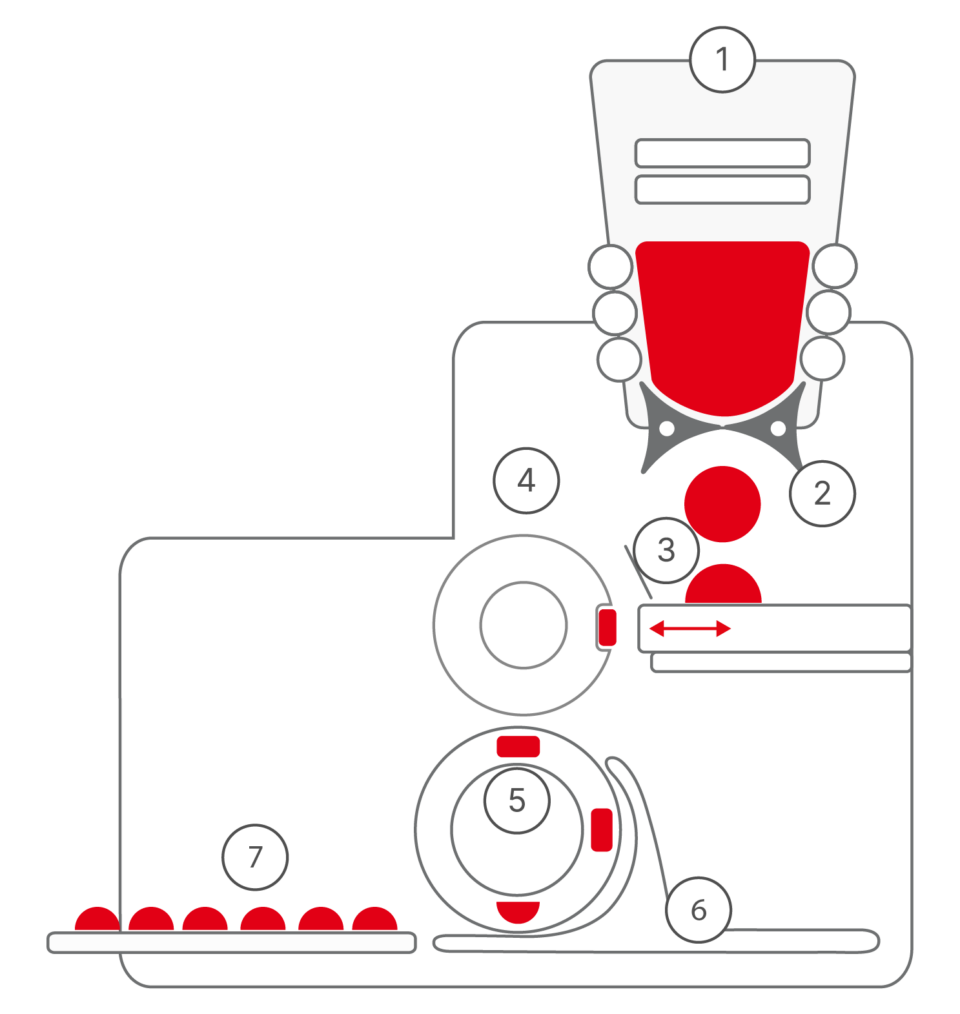

Operating Principle
Arbeitsprinzip Industrie Rex Compact AW
  1. The dough is put into the roller hopper.
  2. Optimised dough portions
    are transported to the weighing area by means of rotating star rollers.
  3. The horizontally moving pusher presses the dough into the
    openings of the rotating weighing drum. The excess dough is transported back to the weighing area by means of a scraping ledge.
  4. After a 90° clockwise rotation, the pieces of dough
    are transferred into the rounding drum.
  5. The subsequent rounding of the dough pieces is carried out with a rounding drum with automatically adjustable eccentric. The size and type of the rounding drum will depend on the consistency and weight of the dough.
  6. Rounding belt with adjustable belt tension for optimal rounding process.
  7. The dough is placed onto the spreading belt at its lowest point.

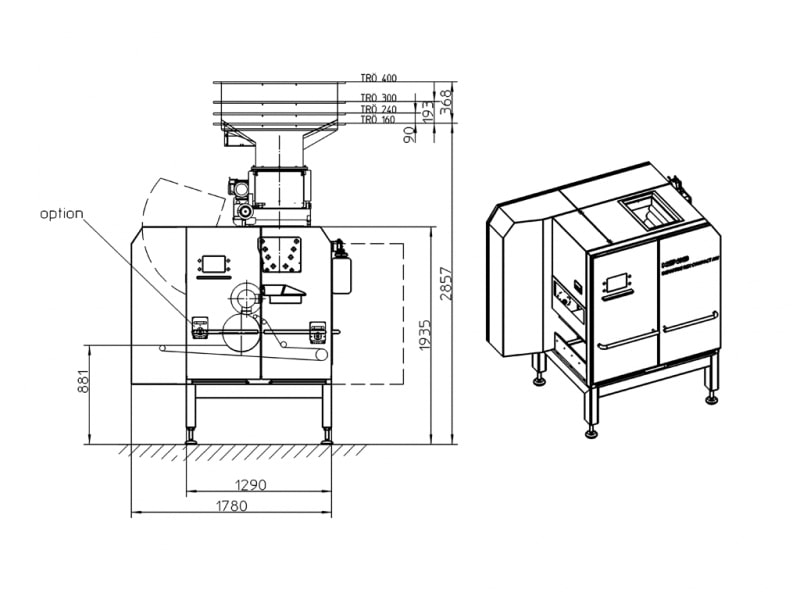

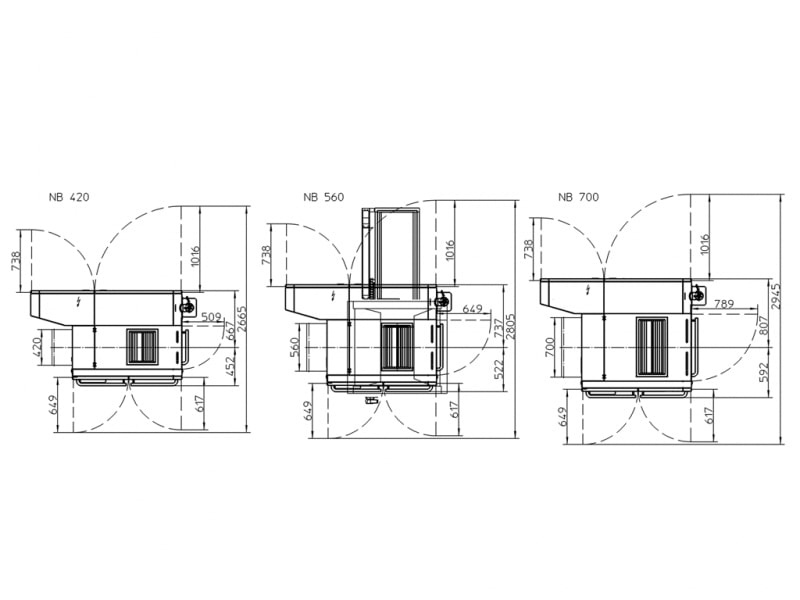

Dimensions
